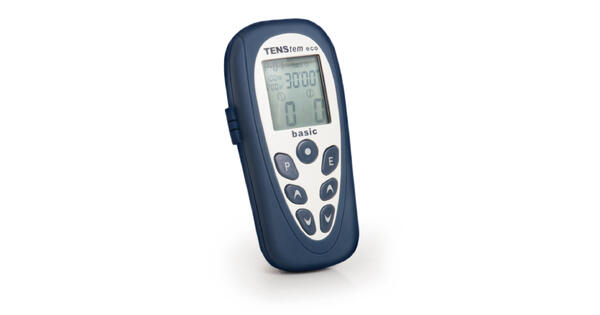

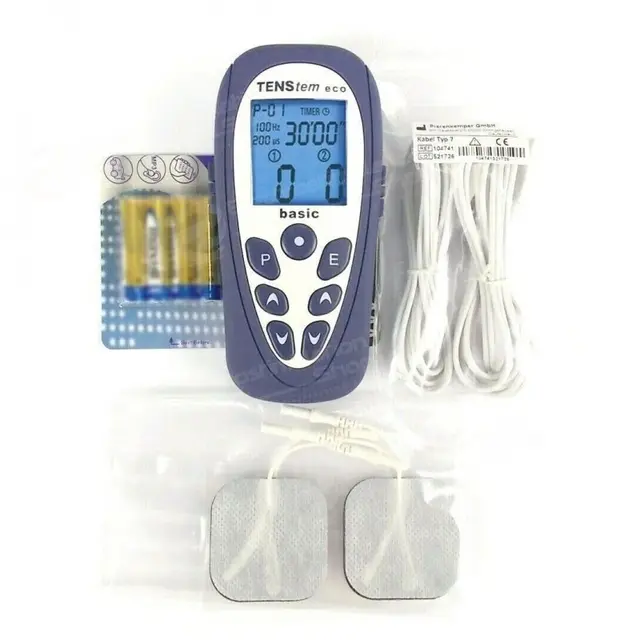

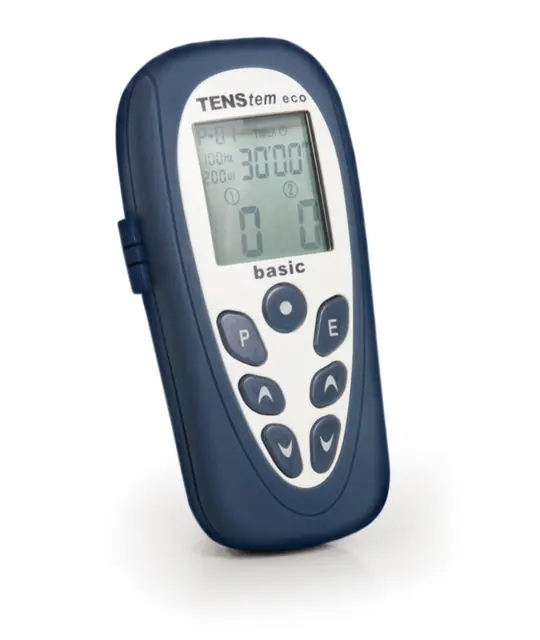

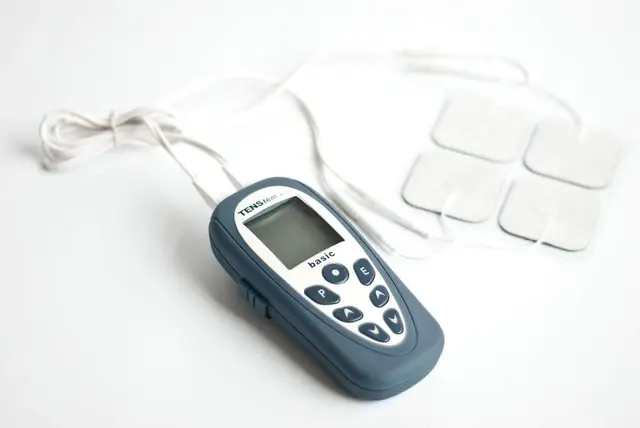

The TENStem eco basic is the most popular TENS unit in the schwa-medico range for price sensitive markets. TENStem eco basic offers a great diversity of programs for an easy selection of the treatment parameters. The TENStem eco basic includes 12 pre-set programs such as burst, frequency modulation, muscle stimulation, dynamic stimulation, HAN stimulation.
The TENStem eco basic also offers 4 free programs for own settings. The latest program P16 now offers the possibility of stimulating with monophasic current. P16 is suitable for iontophoresis treatment.
TENStem eco basic is ideal for home treatment pain management. It is a valuable TENS unit which offers many features at a very reasonable price.
Features
Digital 2-channel TENS unit
12 pre-set programs for pain management,
muscle stimulation and relaxation
4 free programs for own settings
Pain relief programs:
burst, low/high frequency, frequency modulation
Special HAN stimulation program for highest pain relief
1 pre-set + 1 free program for muscle stimulation
Dynamic stimulation program for relaxation and massage
Program P16 suitable for iontophoresis treatment
Locking keypad function for improved safety
Retrievable operating parameters:
total operating time, average used intensity
Integrated AKS (controlled output short circuit)
for enhanced skin protection
Acoustic signal to be switched ON or OFF
Belt clip for easy therapy at home
Detailed instruction manual with pictures of electrode positioning
Technical data:
Output current 0 - 60 mA (with 1 kOhm real)
Frequency range 1 - 120 Hz
Pulse width 75 - 300 µs
Pulse type rectangular biphasic impulse
Power supply 6,0 V (4 x AAA batteries)
or 4,8 V (4 x 1,2 V AAA Akkumulator)
Dimensions 140 x 64 x 28 mm
Weight approx. 96 g (without batteries)
Conformity complies with the Medical Device Directive (CE)
